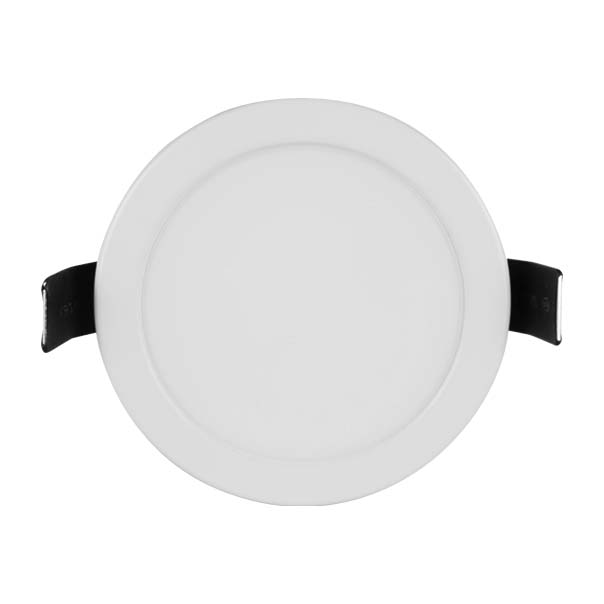

FIRE RATED RECESSED LED DOWNLIGHT

The Fire Rated REL Recessed Downlight meets the latest codes for multi-family fire rating with a 2hr certification per UL263. The edge-lit technology makes it a practical solution with high performance and five CCT selectability (2700K, 3000K, 3500K, 4000K, and 5000K) for ultimate customization. Adjustable spring-loaded retention tabs allow a secure fit for easy installation in both new construction and remodel applications. The REL-FR is an ideal solution for apartment buildings, townhomes, condos, and commercial applications.



Categories: Tags:

Specifications

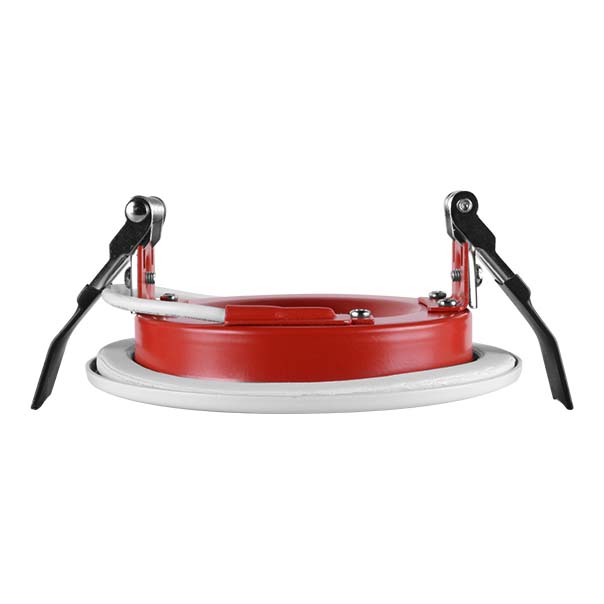

  • Precision engineered optical stack creates uniform light distribution that maximizes lumen output
  • Offered with 5CCT selection of 2700K, 3000K, 3500K, 4000K, and 5000K
  • Utilizes high performing LEDs with 90+ CRI and an R9 > 50
  • Input voltage of 120VAC, 60Hz
  • Dimmable to 5% with compatible leading edge (TRIAC) or trailing edge (ELV) dimmers
  • Operating temperature rating of -4°F to 104°F (-20°C to 40°C)

Downloads

– Downlight Brochure
– Sell Sheet
– Features & Benefits

– Spec Sheet
– Installation Instructions

– Goof Ring Spec Sheet

– ies Files

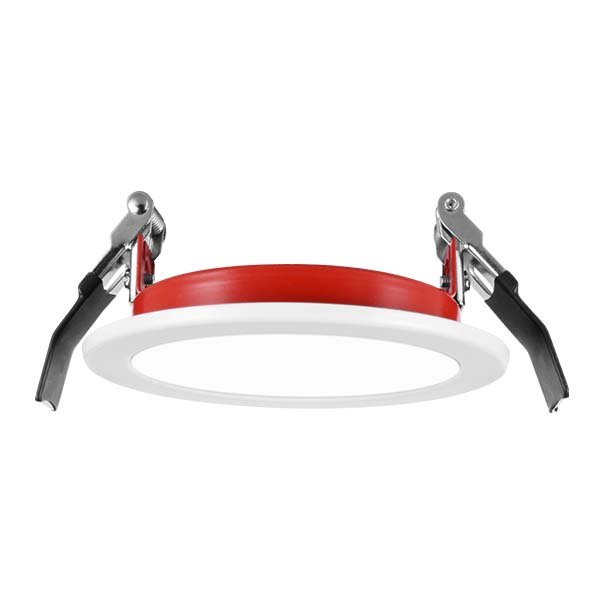

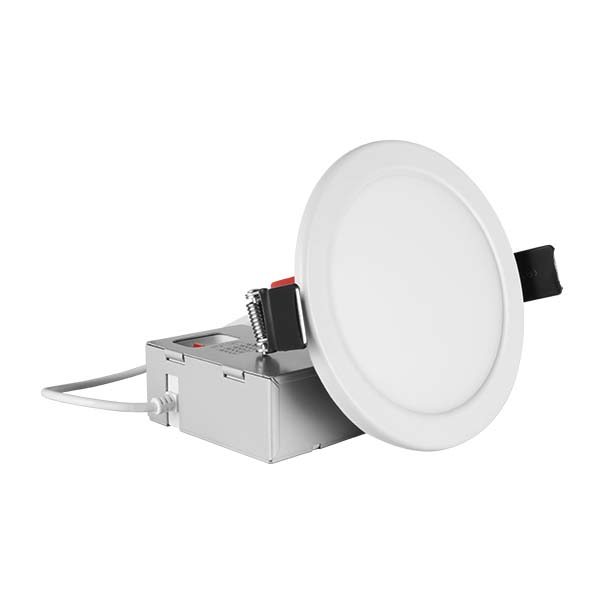

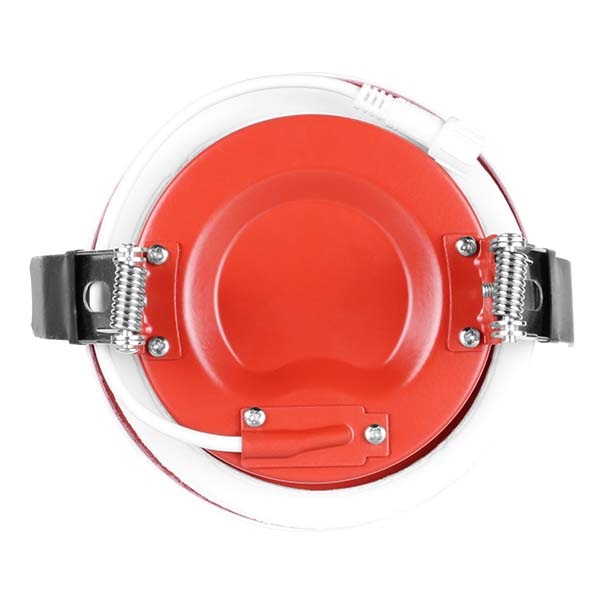

REL4
2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

914
Lumens

983
Lumens

1030
Lumens

1056
Lumens

1041
Lumens

11
Input Watts

11
Input Watts

11
Input Watts

11
Input Watts

11
Input Watts

83.9
lm/W

90.1
lm/W

94.5
lm/W

96.9
lm/W

95.5
lm/W

95
CRI

95
CRI

95
CRI

95
CRI

95
CRI

Part Numbers:

 Select:REL4FR1120SRD9WH

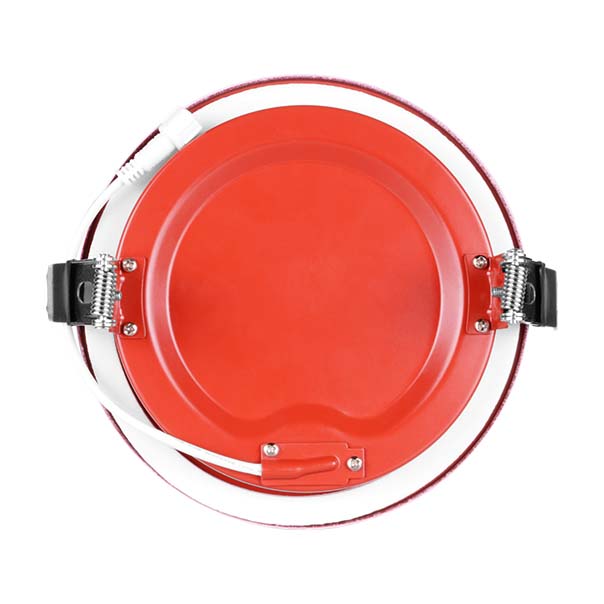

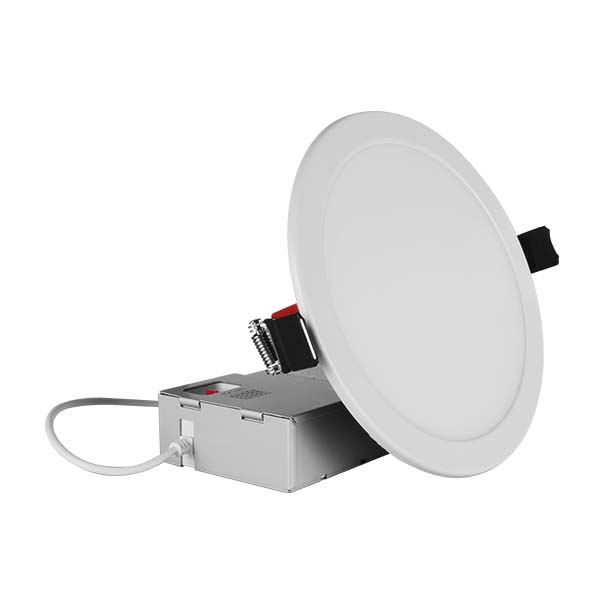

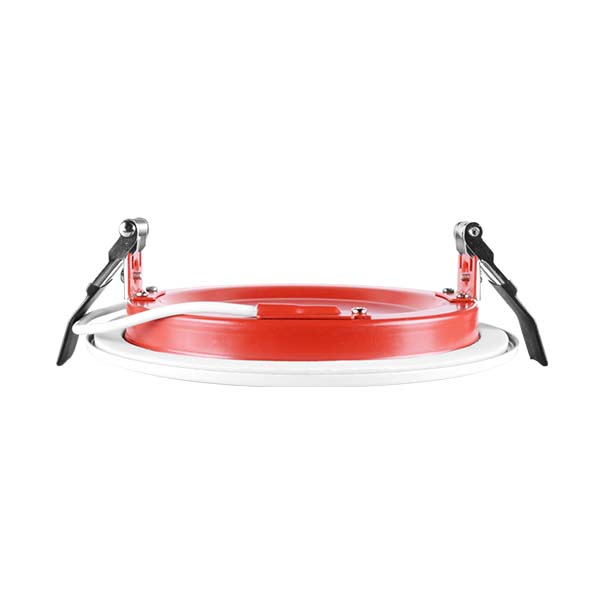

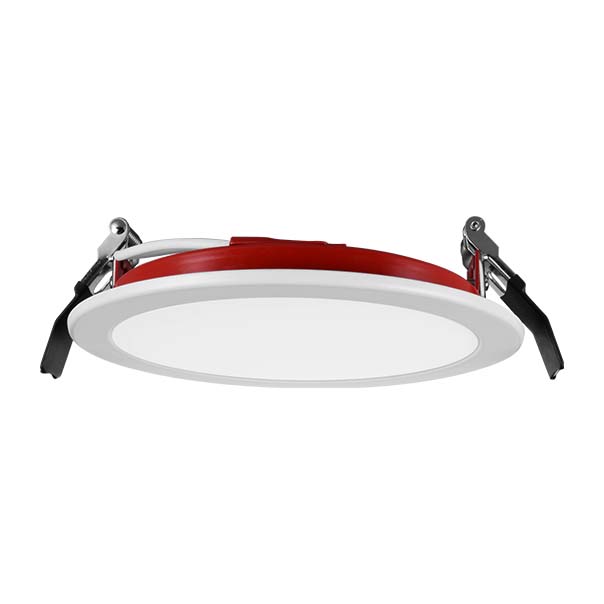

REL6
2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

1251
Lumens

1345
Lumens

1410
Lumens

1445
Lumens

1425
Lumens

15
Input Watts

15
Input Watts

15
Input Watts

15
Input Watts

15
Input Watts

85.7
lm/W

92.1
lm/W

96.6
lm/W

99.0
lm/W

97.6
lm/W

94
CRI

94
CRI

94
CRI

94
CRI

94
CRI

Part Numbers:

 Select:REL6FR1120SRD9WH
